| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000PCS |
| Name: | Hydraulic Excavator Grapple | Max Open: | 2200mm |
|---|---|---|---|
| Close Height: | 1950mm | Material: | Q345B+Hardox450 |
| Warranty: | 6 Months | Flow For Grabbing: | 80~200L/min |
| Weight: | 1850 Kg | Certification: | ISO,CE |
| High Light: | 2200mm Excavator Rotating Grapple,Multifunctional Excavator Rotating Grapple,2200mm rotating grabs excavator |
||

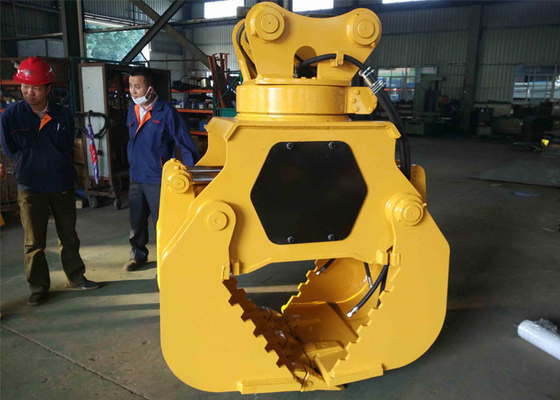

3 Ton Mini Excavator Rotating Grapple 2200mm Multifunctional
High Efficient Excavator Hydraulic Grapple Multi Functional Convenient For Stone Grabbing
Description:
Specification Excavator Rotating Rock Stone Grapple:
| Excavator Model | Komatsu PC300-7 |
| Max open | 1800 mm |
| Self weight | 1850 kg |
| Close height | 1950 mm |
| Grabbing Capacity | 3 ton |
| Flow requirements for grabbing | 80~200L/min |
| Flow requirements for rotating | 16~25L/min |
| Rotating RPM | 3 R/min |
| Material | Q345B+Hardox 450 |
| Warranty | 6 months |
This Grapple is a special design,we customized it according to Customer projects requirements.
It can grab both big size and small size rock stone.
Specification
| Model | HK-ZM30 | HK-ZM60 | HK-ZM120 | HK-ZM200 | HK-ZM300 |
| Excavator tonnage(T) | 3~5 | 6~8 | 9~15 | 16~25 | 27~35 |
| Max open(mm) | 800 | 1100 | 1600 | 2200 | 2600 |
| Self weight(Kg) | 240 | 410 | 810 | 1280 | 1800 |
| Closed height(mm) | 980 | 1250 | 1590 | 1890 | 2200 |
| Flow for grabbing(L/min) | 40~80 | 50~100 | 60~120 | 80~200 | 100~260 |
| Flow for Rotating(L/min) | 16~25 | 16~25 | 16~25 | 16~25 | 16~25 |
1. Advantage / Feature of Doozer products We can make or design buckets as your request. According to different operating conditions and customer needs, various kinds of buckets are designed reasonably from shapes, materials, and stress features, etc.
2. Suitable for all makes and model of excavator and job applications, Sales Areas: South America, North America, Asia, Middle East, Europe, Africa, etc.
This Grapple Advantages:
1. Double cylinder internal design,can protect the cylinder piston.
2. Special mainbody design,can grab both bigger size and smaller size stone.

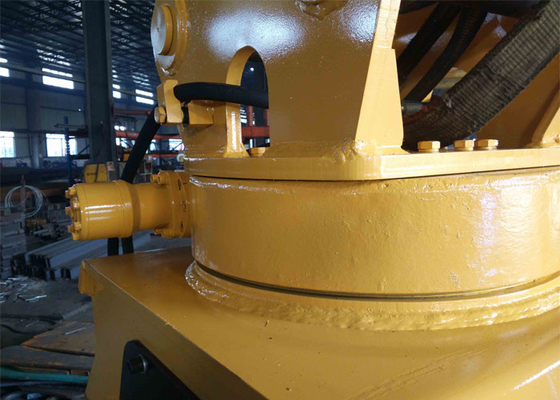

3. Worm rotating,360 degree rotating,rotating speed 3R/min.
Rotating speed is very slowly,so easy for adjust the angle.
Application:
Customer is a high speed road sub-contractor,mainly for build road base in mountain.
So need lots of rock stones for construction of Road base.Stones' size some are bigger,some are smaller.
Also need to adjust the angle when placing the stone.
So we customize this special rotating stone grab for customer.It can grab both bigger size and smaller size stone,also can adjust angle when placing the stone.
