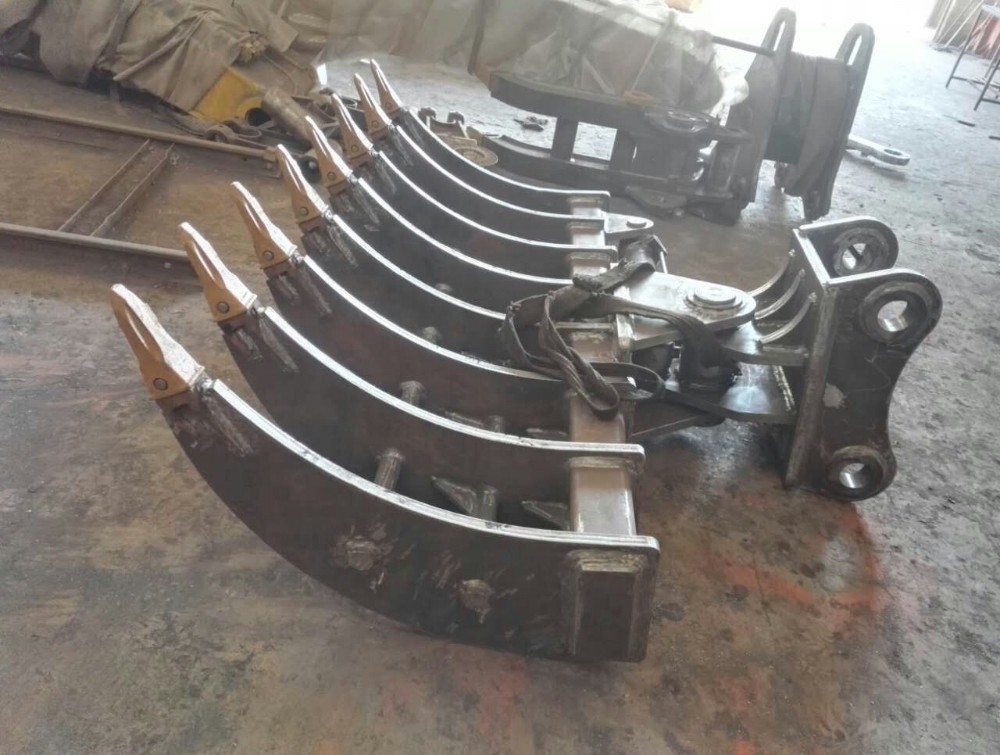

Customized Excavator Skeleton Bucket Brush Rake For Smashing Hard Substances

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	Standard package
Delivery Time:	15 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10000PCS

Contact Now

Detailed Product Description

Name:	Excavator Root Rake	Suitable Excavator(ton):	7-70
Material:	Q345/Q460/NM360/NM400/WH60)/Hardox400	Quality Control:	100% Inspection
Color:	Customer Required	After Warranty Service:	Video Technical Support, Online Support
High Light:	Q460 excavator root rake , ODM Excavator Skeleton Bucket , Q460 Excavator Skeleton Bucket

Customized Excavator Skeleton Bucket Brush Rake For Smashing Hard Substances

Customized Excavator Brush Rake / Digger Land Rake For Smashing Hard Substances

Product Description

1. Characteristics: Excellent digging cut-in ability

2. Use high strength steel: Q355B/NM360/Hardox500 according to different requirements

3. Application: For smashing hard substances such as hard rocks , gravel and weathered stone. Convenient for buckets digging and loading.

Product Features

1. All size of rakes are available depending on the carrier vehicle.
2. Custom service is available for different shape.

3. Wear resistant steel is used to prolong the durability of the ripper.

Specifications

Type	Material	Certification	Application
General-Purpose Rake	Q355/Q460	ISO9001:2008	Root Cleaning, Soil, Sand
Heaby-Duty-Rake	Q355/Q460/NM360		Root, Soil, Sand, Gravel, Rock
Severe-Duty-Rake	Q355/NM360/HARDOX500		Root, Soil, Sand, Gravel, Rock, Metal, Construction Material

Material Used
Material	Code	Related Chemical Composition					Hardness(HB)	Extension(%)	Drag and extension intensity (N/mm2)	Bend Intensity (N/mm2)
		C	Si	Mn	P	S
Alloy	Q355B	0.18	0.55	1.4	0.03	0.03	163-187	21	470-660	355
Chinese High-Strength alloy	NM360	0.2	0.3	1.3	0.02	0.006	360	16	1200	1020
High-Strength alloy	HARDOX-500	0.2	0.7	1.7	0.025	0.01	470-500	8	1550	1300

Customer Service

1. Your inquire related to our products or price will be replied in 24 hrs

2. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available if you want.

3. Online techinical supports are available for the whole product life. Oversea services are available with extra fees.

4. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers.

5. An experienced tech-team are ready to meet your special requirements.

FQA

1. DO YOU ACCPET OEM? WHAT'S YOUR MOQ? ANY EXPERIENCE FOR OEM?

We accept OEM for every product that we produce; There is no MOQ for any of our product if you wanted a OEM; We've been doing OEM ever since the year we established our factory, which is 2010

2. IS YOUR DELIVERY ALWAYS ON TIME?

We can't promise about the freight but what we can do is shortening our lead time while keep the same quality level. So there will not be any problem even if the sea freight delay for a couple days.

3. HOW AM I START ORDERING?

First, talk to our sales about your machine medel, working conditions, special needs, deadlines. Then, our sales will provide the details you need. All inquiry will be responed within 24 Hours.

4. CAN YOU KEEP ME UPDATE ABOUT MY ORDERS' PRODUCTION PROCESS?

Of course, unlike others who might hide their production process, our production process are totally open for our customers. Feel free to inform our sales about your needs.
