Excavator Q345 2600rpm vibrating sheet pile hammer For Steel Plate Pile Driver

Product Details:

Place of Origin:	CHINA
Brand Name:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	Standard package
Delivery Time:	15 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10000PCS

Contact Now

Detailed Product Description

Name:	Sheet Pile Vibratory Hammer	Material:	Q345
Efficient:	High	Processing:	Advanced Equipment
Application:	Steel Plate Pile Driver	Pile Height:	12-18 Meter Steel Plate
High Light:	Q345 Vibrating Sheet Pile Hammer , 2600rpm Vibrating Sheet Pile Hammer , 2600rpm hydraulic vibro hammer

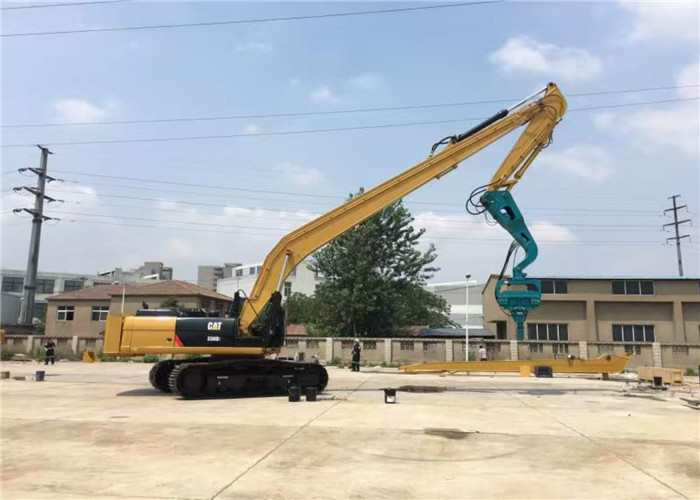

Excavator Q345 Vibrating Sheet Pile Hammer For Steel Plate Pile Driver

High Efficient Excavator Vibro Hammer Sheet Pile For Steel Plate Pile Driver

Products application

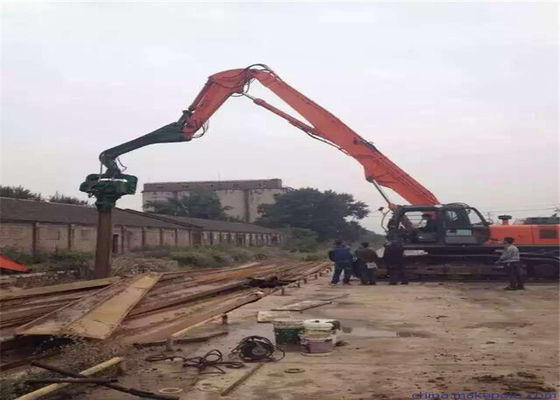

The efficient of vibration pile method is higher than other methods. It is mainly applied to steel sheet pile, steel pipe pile and long slender concrete precast pile within 8 meters. This pile driving method is the most suitable for working in sand and poorer effect in the clay which must select higher power model machines.

hydraulic vibro hammer Performance parameter

Model	V-250D	V-300E	V-330E	V-350E	V-400D	V-450B	V-500A
Vibration frequency(rpm)	2800	3000	3000	3000	2600	2600	2600
Vibrating force(T)	39.5	48	51	53.4	55.5	58	63
Hydraulic system operating pressure(Bar)	300	300	300	300	300	300	300
Hydraulic system flow demand(Lpm)	175	240	270	270	280	300	320
Main body weight(T)	1.55	1.65	1.65	1.8	2	2.05	2.1
Apply to excavator weight(T)	20-24	24-30	30-35	35-40	38-42	40-45	48<
Clip mouth weight(kg)	C15:455kg; C16E:530kg; C18E:578kg C30B:455kg; C35B:530kg
Assistant arm weight(kg)	A200:500kg; A250B:600kg A350:900kg
