Home /Products/Kubota Engine Parts/Full Overhaul Exact Fit V1903 Sealing Gasket Set OE 66851-99350 66851-99360

Full Overhaul Exact Fit V1903 Sealing Gasket Set OE 66851-99350 66851-99360

1 SET
MOQ
$58-$110
Price
Full Overhaul Exact Fit V1903 Sealing Gasket Set OE 66851-99350 66851-99360
Features Gallery Product Description Chat Now
Features
Specifications
Brand: Kubota
Product Type: Kubota V1903 Excavator Overhaul Gasket Kit
Application: Kubota V1903 Powered Excavators, Tractors, Industrial Machinery
Quality Standard: OEM Standard (Matches Kubota Original Specifications)
Warranty: 6 Months Warranty
Worldwide Shipping: Yes (Fast Delivery To Global Destinations)
Material Grade: High-Grade Heat-Resistant & Oil-Resistant Industrial Sealing Material
Certification: ISO Certified
Highlight:

66851-99350 gasket set

,

V1903 gasket set

,

66851-99360 excavator engine parts
Basic Infomation
Place of Origin: CHINA
Brand Name: For Kubota
Certification: ISO 9001/IATF 16949
Model Number: V1903
Payment & Shipping Terms
Packaging Details: Inner: Airtight PE bag + desiccant + EPE foam protection, with certificate & guide Outer: 5-ply corrugated carton (30×30×30cm, 3kg/set), neutral packing, custom marks available
Delivery Time: 3-8 days
Payment Terms: T/T,Western Union,D/A
Supply Ability: 10000PCS/ WEEK
Product Description
Kubota V1903 Engine Full Overhaul Sealing Gasket Kit

This OE-matched Kubota V1903 sealing gasket kit (core OE: 66851-99350/66851-99360) is a professional full-overhaul solution for V1903 4-cylinder diesel engines. Engineered to resolve oil, water, and air leakage issues that cause engine inefficiency and costly downtime.

Core Part Numbers

Main Kit: 66851-99350 (Top Gasket Set) | 66851-99360 (Bottom Gasket Set)

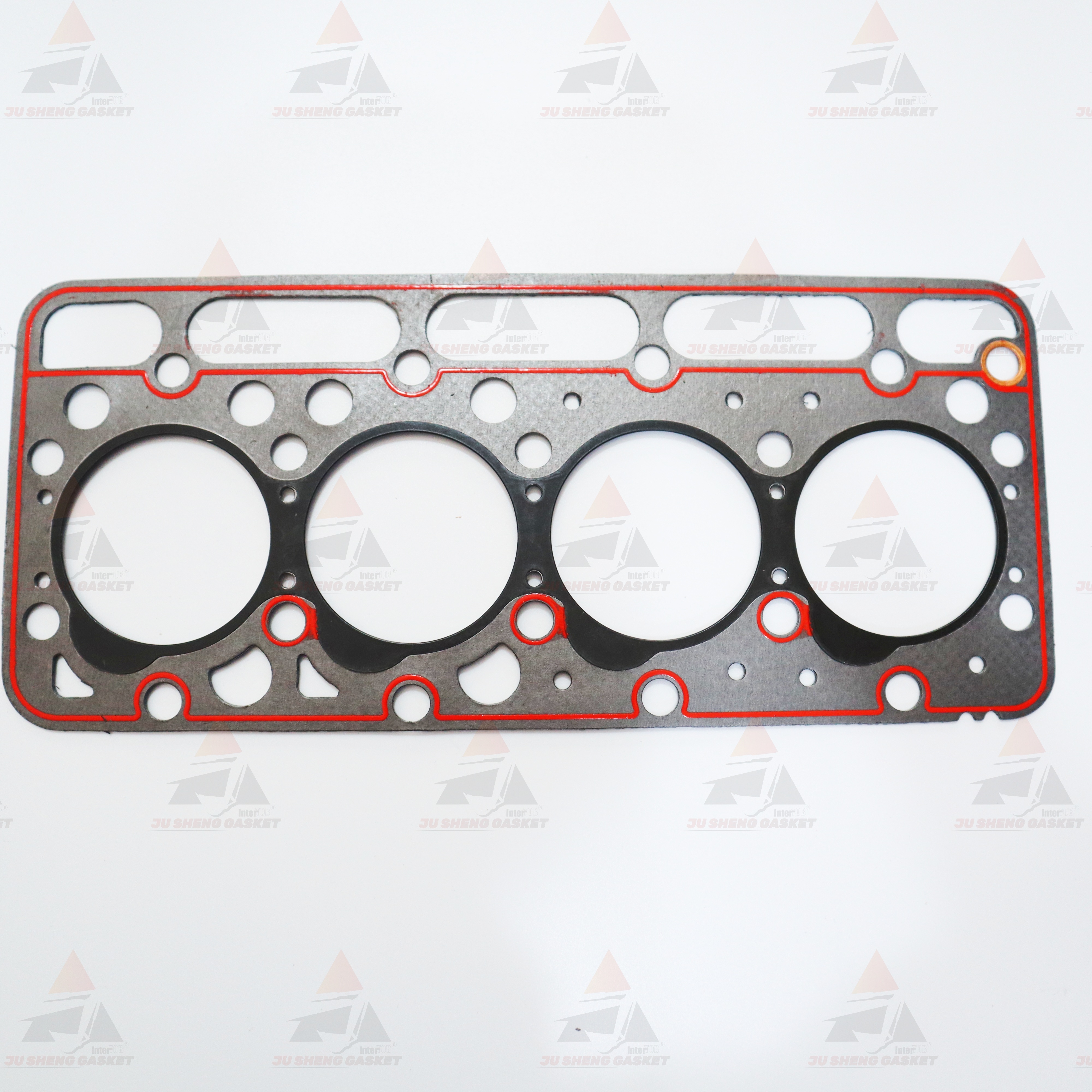

Key Components: Cylinder Head Gasket: 66851-03310 | Valve Cover Gasket: 66851-14520 | Crankshaft Oil Seal: 66851-04140 (front) / 66851-04460 (rear)

Product Specifications
Specification Category Details
Product Name Kubota V1903 Engine Full Overhaul Sealing Gasket Kit
Core OE Part Numbers 66851-99350 (Top Set), 66851-99360 (Bottom Set)
Additional OE Matches 66851-03310, 66851-14520, 66851-04140, 66851-04460
Applicable Engine Kubota V1903-DI/V1903-CR/V1903-T 4-Cylinder Diesel Engine
Main Materials Oil Seals: FKM/NBR rubber + metal skeleton; Gaskets: metal composite + EPDM rubber
Key Performance Temperature Resistance ≤180℃; Pressure Resistance ≤1.5MPa; Zero Leakage (Oil/Water/Air)
Certifications ISO 9001 ROHS

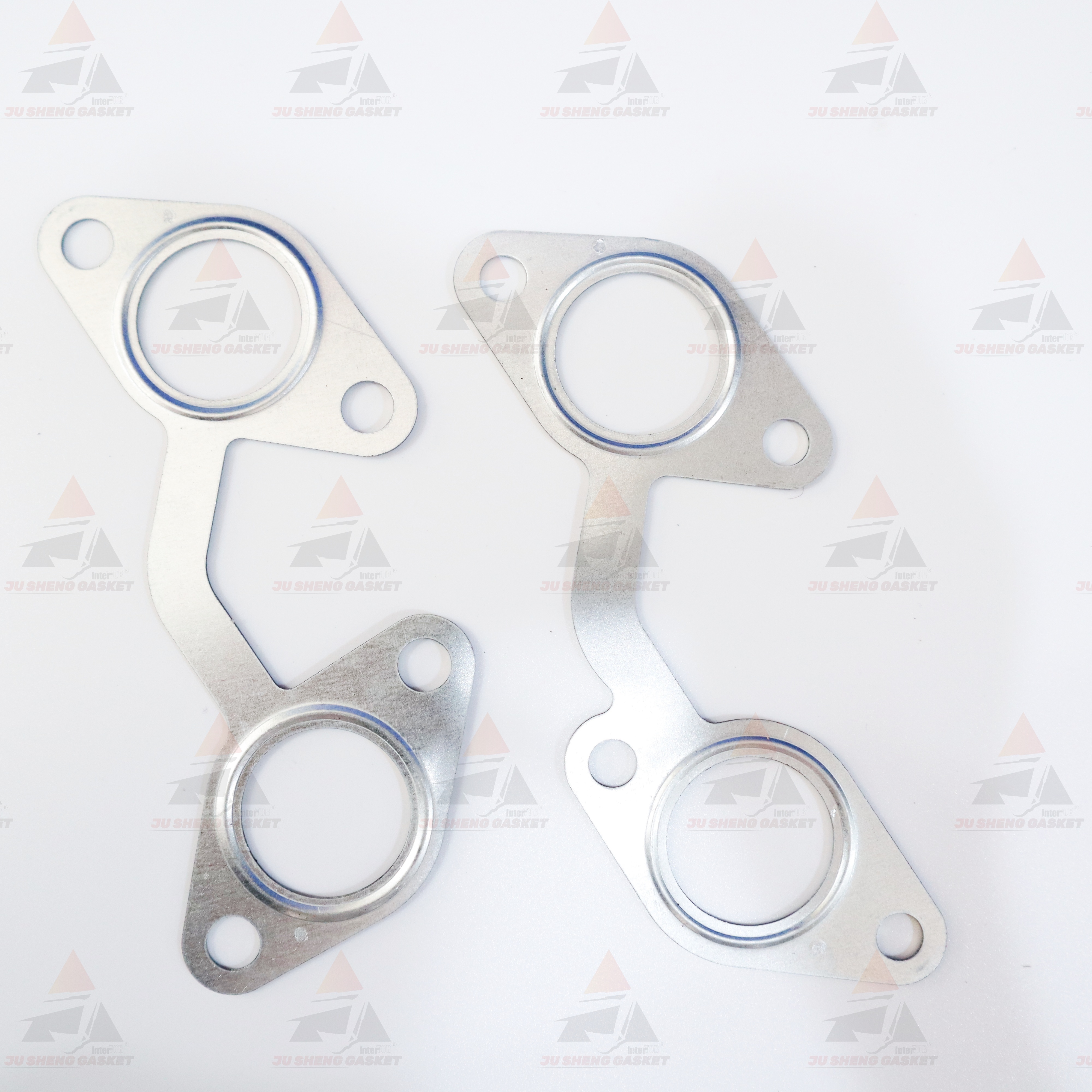

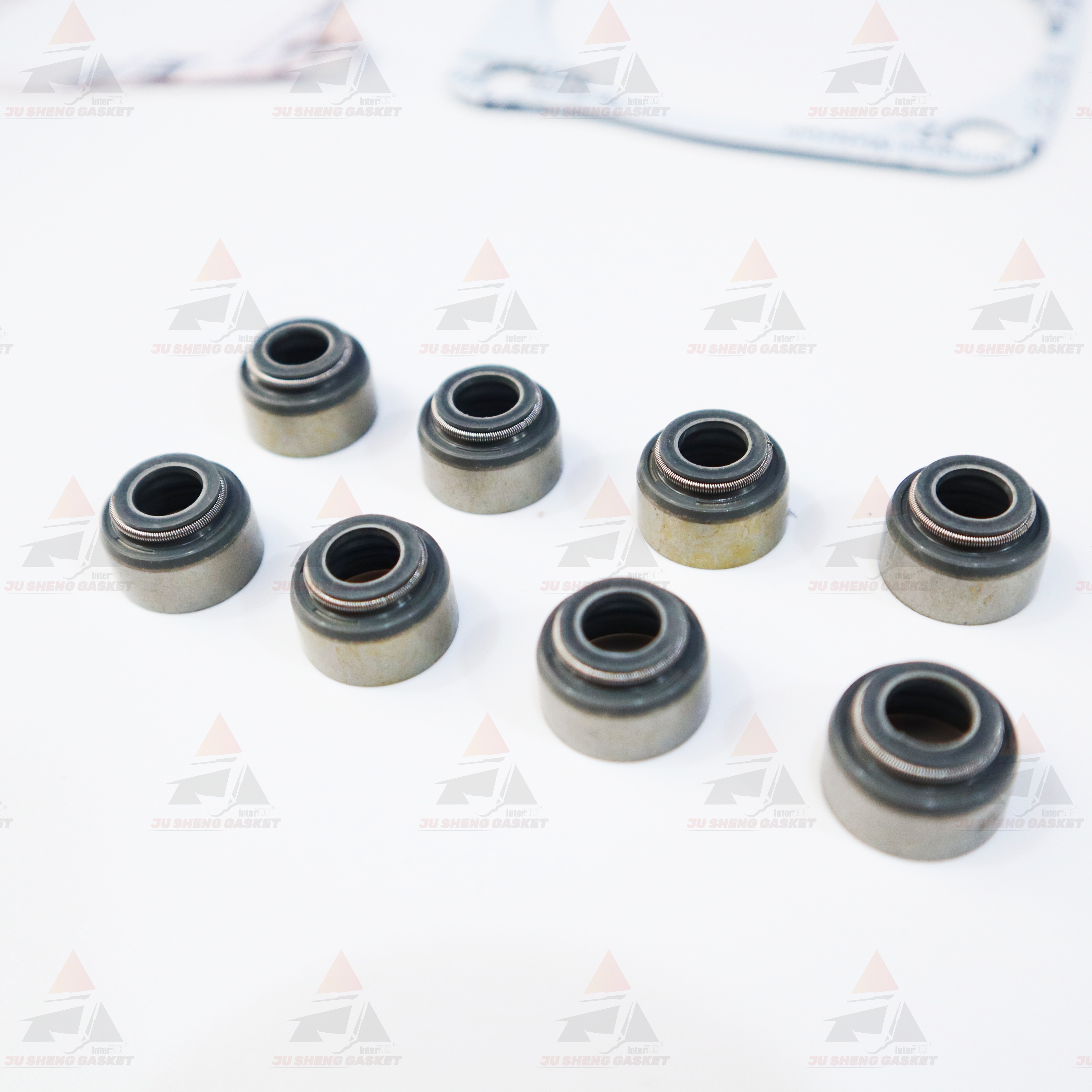

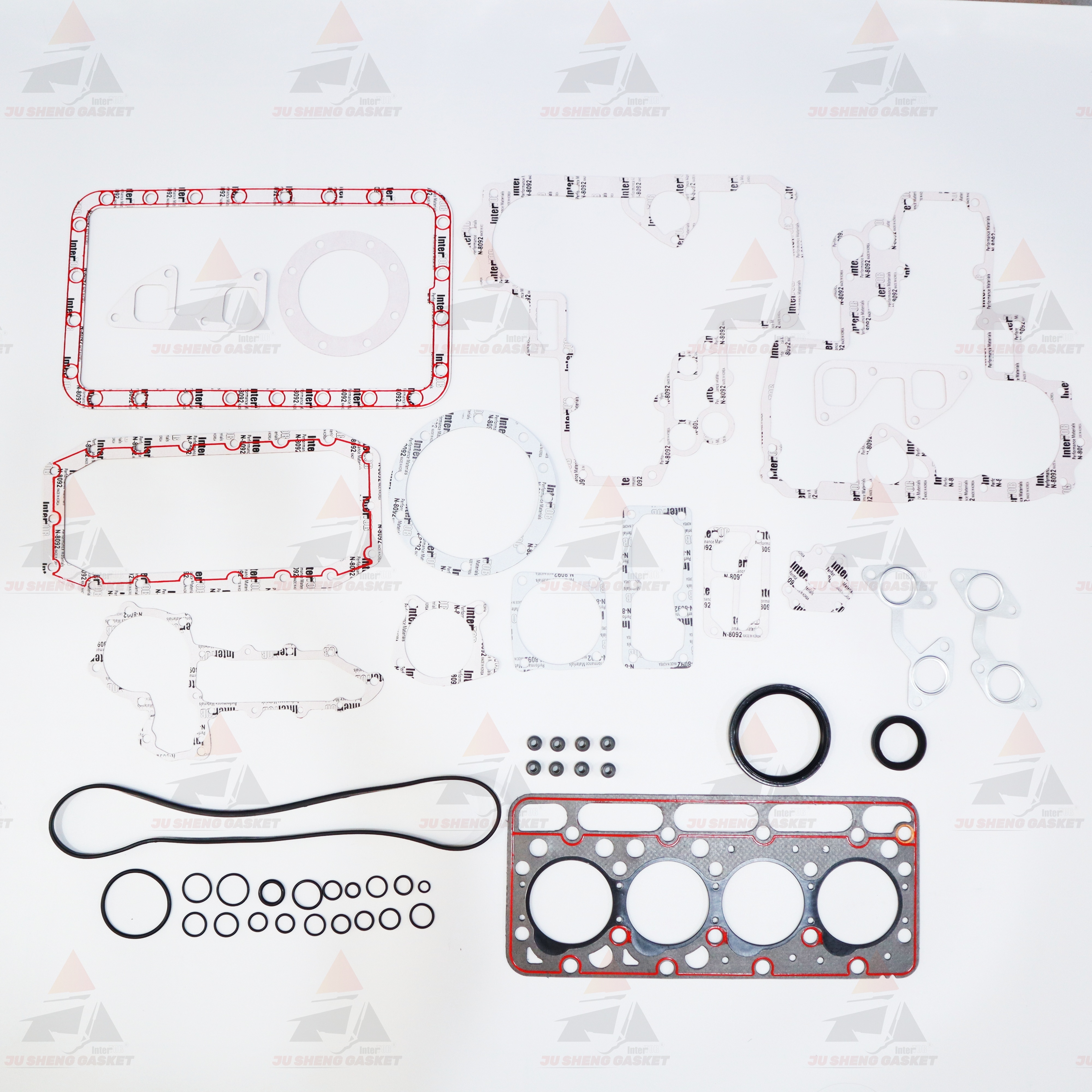

Kit Content 28+ pieces including cylinder head/valve cover gaskets, crankshaft oil seals, intake/exhaust manifold gaskets, and all small sealing components
Compatible Machinery Kubota mini excavators, compact tractors, skid steer loaders, and all V1903-powered equipment
Packaging & Weight 5-ply reinforced corrugated carton (26*26*26cm) with EPE foam protection; Gross Weight: 2.7kg/set
Warranty & MOQ 6 Months/1000 Working Hours WARRANTY; MOQ: 1 Set; Bulk discounts available for 50+/100+ sets
Key Features & Benefits
  • Complete Overhaul Solution: 28+ essential sealing parts included, covering all V1903 engine overhaul requirements
  • Precision Exact Fit: 100% Kubota OE-matched, no modification required, saving 50% installation time
  • Superior Leak Prevention: Textured sealing surfaces with high compression rebound rate for zero leakage under high pressure
  • Durable Construction: FKM/NBR rubber + metal composite materials resistant to high temperatures (≤180℃) and diesel oil corrosion
  • International Standards: ISO 9001/ROHS certified, meets EU/NA standards for global compatibility
Compatible Equipment Models

Kubota V1903-DI/V1903-CR/V1903-T 4-cylinder diesel engine variants | Kubota Excavators: KX61-3/KX91-3 mini excavators | Kubota Tractors: B2900/B3030 compact tractors | Skid Steer Loaders: Bobcat 463/553 (V1903-powered) | All compact construction, agricultural, and industrial machinery equipped with Kubota V1903 engine.

Model Compatibility Check: Not sure if your model is compatible? Contact our technical team with your equipment VIN for free fast matching service!

Q&A (Frequently Asked Questions)

Q1: Is this kit compatible with Kubota V1903-T turbocharged engine used in Middle East construction machinery?

A: Yes, it’s fully compatible with all V1903 variants (naturally aspirated/turbocharged), and optimized for Middle East hot climates (temp resistance ≤200℃)—no modification needed for direct installation, OE-matched design ensures perfect fit.

Q2: What is the service life of this gasket kit in heavy-load operations?

A: Under normal heavy-load working conditions, the service life is ≥2500 working hours (or 2.5 years), which exceeds the original Kubota gasket’s service life. We provide a 6-month/1000 working hours warranty for quality assurance.

Q3: Can I get customized packaging and bulk quotes for 300+ sets to UAE?

A: Absolutely! For large bulk orders to Middle East countries (UAE, Saudi Arabia, Qatar), we offer preferential wholesale prices, customized packaging (with your brand logo), flexible payment terms (T/T, L/C) and fast port-to-port delivery (3-5 days to Jebel Ali Port). Contact our sales team directly for a tailored quote and sample confirmation.

Q4: Do you provide customs clearance documents for Middle East import?

A: Yes! We offer full customs clearance assistance, including providing commercial invoice, packing list, certificate of origin (CO), ISO/ROHS certification and OE-matching report—ensuring smooth customs clearance in Middle East countries.
