Place of Origin: | CHINA |
Brand Name: | OEM |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Standard package |
Delivery Time: | 15 working days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 10000PCS |
Excavator: | 14&20 Ton Excavator | Total Width: | 600mm |
---|---|---|---|
Total Height: | 1180 Mm | Block Thickness: | 50 Mm |
Drum Width: | 532 Mm | Block Height: | 70 Mm |
Drum Diameter: | 800 Mm | Material: | Q345B |
High Light: | Q345B cat compaction wheel compact,Q345B excavator attachments,600mm trench compactor wheel |

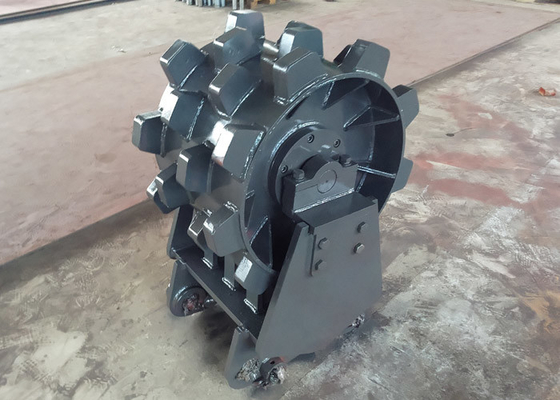

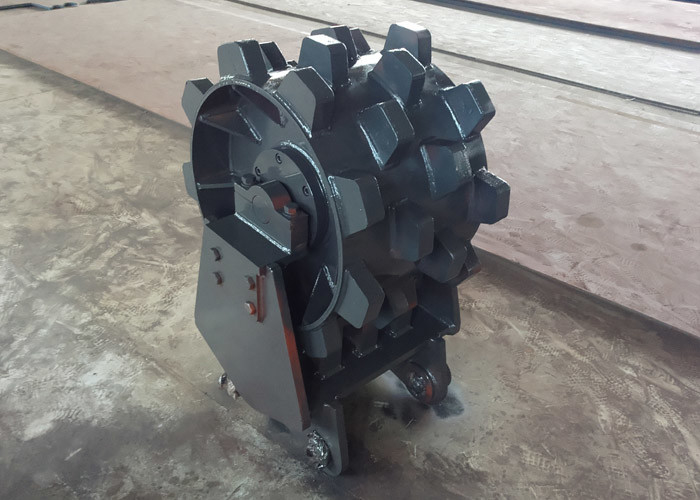

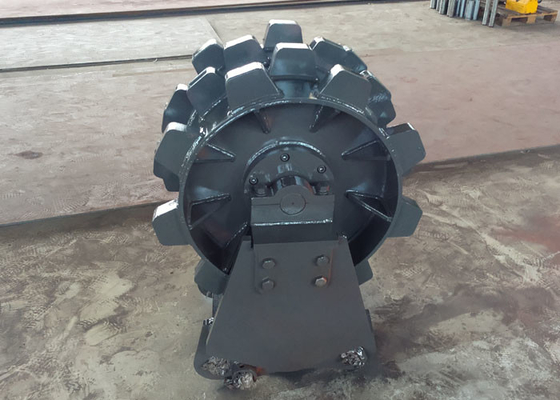

High Precision Excavator Compaction Wheel / Trench Compactor Wheel
Description:
Excavator compaction wheels is a popular attachments in developed country. In the construction of ditches,can use compaction wheel to compact the soft soil to hard flat soil after excavating. In farm,also can compaction the soil after trenching.
Specification of this 14&20T Excavator compaction wheel:
Excavator | 14&20 ton |
Total width | 600 mm |
Drum width | 532 mm |
Drum diameter | 800 mm |
Total height | 1180 mm |
Block thickness | 50 mm |
Block height | 70 mm |
Material | Q345B |
We customized this compaction wheels for customer.
This Compaction wheel is a very special design can fit for both 20Ton and 14Ton pick up dimensions
Advantages:
1. High precision
2. Bearing rotating,not bushing rotating
3. All compaction wheels have clean plate on the top,can clean the mud on the knobs
Application:
1. These compaction wheels was customized for both 12T and 20T excavator,and was export to Australia
2. Customer is a farm machiner dealer for excavators in Australia,he also have several excavator for rent business.
Specification of our series compaction wheels:
Model | HK-CPW50 | HK-CPW120 | HK-CPW200 | HK-CPW300 |
Total width / mm | 430 | 500 | 568 | 600 |
Drum width / mm | 350 | 420 | 495 | 532 |
Drum diameter / mm | 480 | 560 | 780 | 1080 |
Self weight / kg | 380 | 450 | 790 | 1080 |
Total height / mm | 900 | 1020 | 1150 | 1300 |
Compact block thickness / mm | 40 | 40 | 50 | 50 |
Compact block height / mm |
50 | 50 | 70 | 70 |
Above parameter is our standard design,if you need special design,we also can customize for you.
