Isuzu 4HF1 Engine Gasket Kit for Excavator – Complete Overhaul Set | Isuzu Excavator Engine Parts
This premium Isuzu 4HF1 Engine Gasket Kit is specifically engineered for Isuzu 4HF1 diesel engines used in medium-duty excavators, wheel loaders, and construction machinery. Manufactured to meet or exceed OEM specifications, this comprehensive set includes every sealing component needed for complete upper and lower engine overhaul, ensuring leak-free operation and restored engine compression.
Engine Specifications
The Isuzu 4HF1 is a 4.3L (4334cc), inline 4-cylinder, 4-stroke, water-cooled diesel engine known for robust cast iron construction, fuel efficiency, and reliable performance in demanding excavator and commercial vehicle applications. This engine requires precision sealing components to maintain optimal compression under high-stress operating conditions.

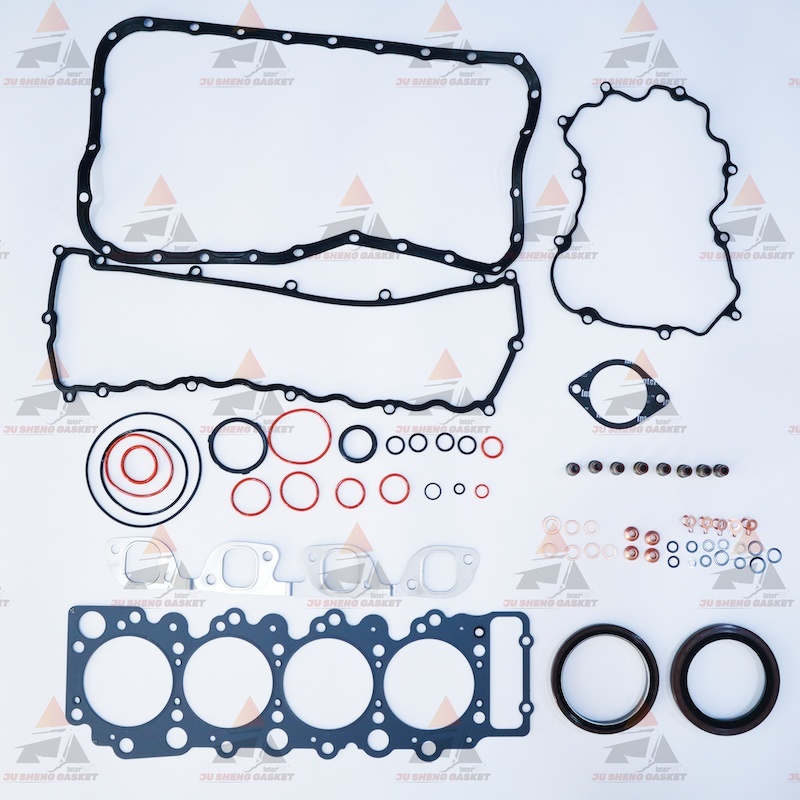

Kit Contents
| Component |
Quantity |
Material / Remarks |

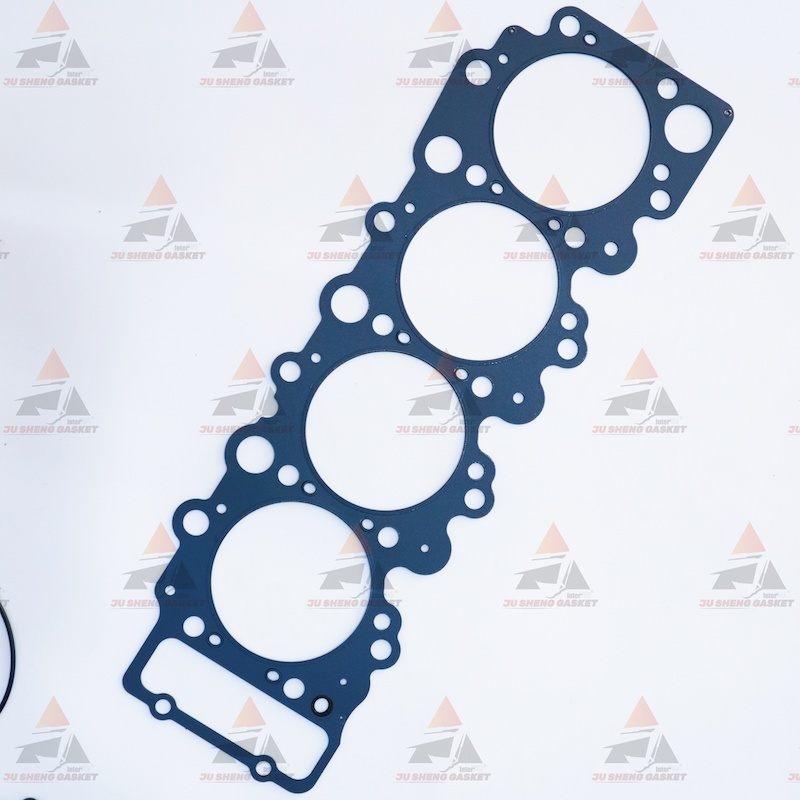

| Cylinder Head Gasket |
1 |
Multi-Layer Steel (MLS) – withstands 1200°C, 50 bar |

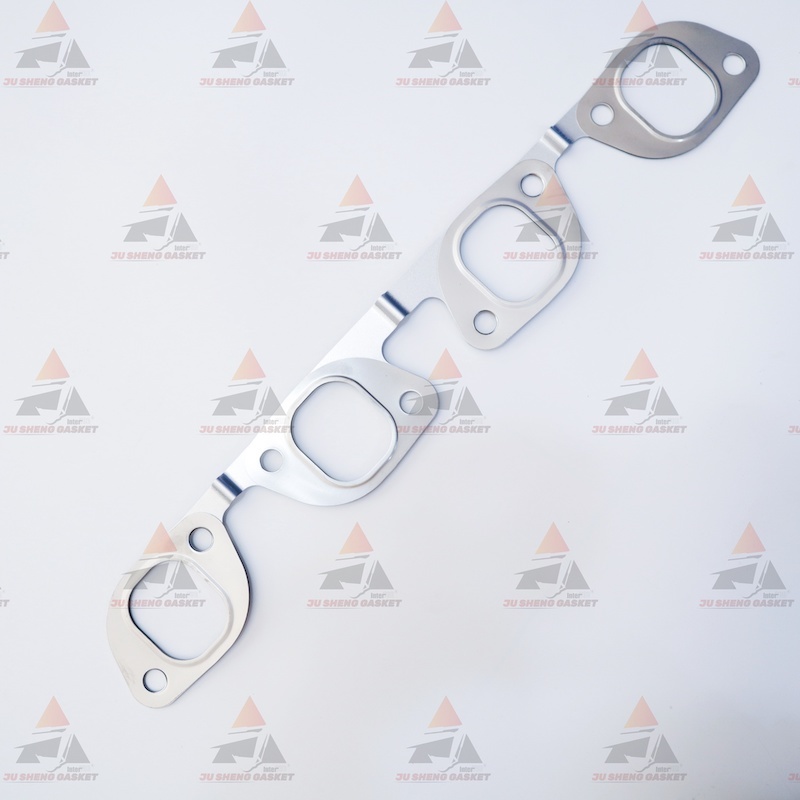

| Exhaust Manifold Gasket |
1 |
Graphite with steel core |
| Intake Manifold Gasket |
1 |
Composite fiber |
| Valve Cover Gasket |
1 |
Silicone rubber |
| Oil Pan Gasket |
1 |
Rubber – OEM 8971461480 compatible |
| Front Timing Cover Gasket |
1 |
Fiber / paper |

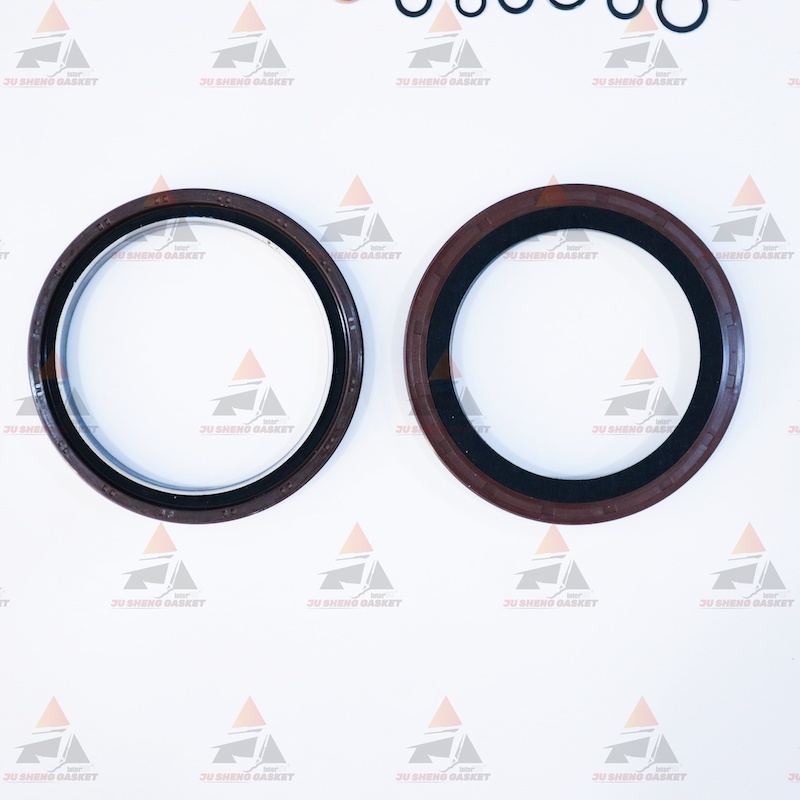

| Rear Main Seal |
1 |
PTFE / nitrile rubber |
| Front Crankshaft Oil Seal |
1 |
Nitrile rubber |
| Turbocharger Gaskets (set) |
2 |
Metal / graphite (for 4HF1T turbo models) |
| Fuel Injection Pump Gasket |
1 |
Paper |
| Water Pump Gasket |
1 |
Fiber |
| Thermostat Housing Gasket |
1 |
Rubber |
| EGR Cooler Gasket |
1 |
Multi-layer steel (where applicable) |

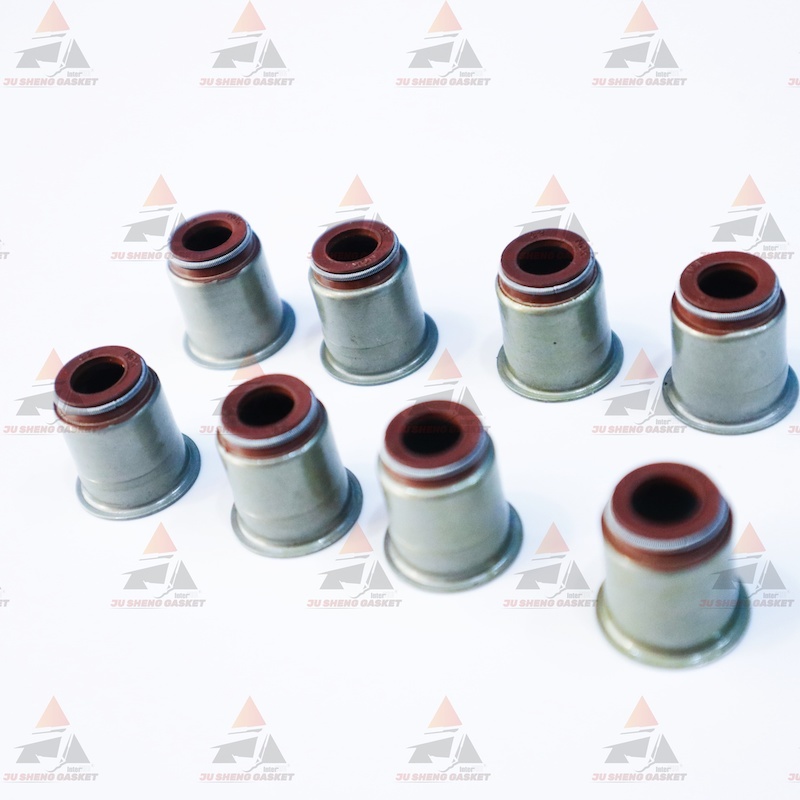

| Valve Stem Seals |
8 |
Viton |
| Injector Seals (copper) |
4 |
Annealed copper |
| Rocker Cover Gasket |
1 |
Silicone rubber |
| Oil Cooler Gasket |
1 |
Rubber / fiber composite |
| Cylinder Head Cover Plug |
1 |
Rubber – 8-94399-605-0 compatible |
| O-Ring Assortment |
Set |
Various sizes (Viton / NBR) |
Note: Kit contents may vary slightly depending on engine configuration (naturally aspirated vs. turbocharged, mechanical injection) and application. Please verify your engine serial number before ordering.
OEM Reference Numbers
5-87814-344-3, 5-87811-869-2, 5-87813958-4, 5-87817124-2, 8-97109-937-0, 8-97109-938-0, 8-97109-939-0, 8-97109-940-0, 8-97109-941-0, 8-97109-942-0, 8971461480
Key Features
- OEM-Equivalent Quality – Strictly adheres to Isuzu dimensions and material standards
- Complete Overhaul Set – Includes all gaskets and seals for upper and lower engine sections
- Superior Durability – MLS head gasket withstands extreme temperatures up to 1200°C and pressures exceeding 50 bar
- Corrosion-Resistant Materials – Stainless steel and coated components resist rust and chemical degradation
- Precision Fit – Direct bolt-on replacement with zero modifications required
- Comprehensive Leak Protection – Ensures oil, coolant, and combustion gases remain perfectly sealed
- Heat-Resistant Construction – Graphite and steel composite exhaust gaskets withstand extreme temperatures
- Durable Rubber Components – Oil pan gasket rated for temperatures up to 250°C
Applications
Engine Models
Isuzu 4HF1, 4HF1T (Turbocharged) diesel engine (4.3L / 4334cc) – mechanical injection
Excavators & Construction Machinery
- Hitachi EX120, EX150, EX200 series (with 4HF1 engine conversions)
- Kobelco SK200, SK210, SK200NLC, SK210NLC
- Sumitomo SH200, SH200-2, SH220
- JCB JS200, JS220, JS240
- SANY SY200, SY210, SY220
- Case CX200, CX210, CX240
- Sunward SWE200, SWE210
- XCMG XE200, XE210, XE215
Trucks & Commercial Vehicles
- Isuzu NPR, NPR-HD, NQR, NRR (2000-2009) with 4HF1 4.3L diesel engine
- Isuzu FSR, FTR (select models)
- Chevrolet / GMC W-Series (Tiltmaster / Forward) with Isuzu 4HF1 engine
Other Equipment
- Wheel loaders
- Forklifts and material handling equipment
- Generator sets
- Agricultural machinery
- Industrial equipment
Material Advantages
- MLS Cylinder Head Gasket: Multi-layer steel construction provides superior sealing force and heat dissipation
- Viton Valve Stem Seals: Excellent heat and oil resistance for extended service life
- Rubber Oil Pan Gasket: Durable construction withstands high temperatures and prevents oil leakage
- Precision-Machined Components: Ensures optimal alignment for maximum sealing performance
Why Choose Our Gasket Kit?
Each kit undergoes rigorous quality checks to guarantee consistent performance and longevity. Engineered using advanced material technology, our gaskets combine the strength of MLS steel with the flexibility of high-temperature elastomers to deliver superior sealing solutions for demanding excavator and commercial vehicle applications.
This complete gasket set saves time and money compared to sourcing individual components, while ensuring all sealing points are addressed with matched, compatible components designed specifically for the 4HF1 engine.
Proper installation is critical for optimal performance. Ensure engine is cool, thoroughly clean all mating surfaces, and follow specified torque values and sequences during reassembly.
Restore your excavator's power and efficiency – order your Isuzu 4HF1 gasket kit today.
