Isuzu 3LB1 Engine Gasket Kit for Excavator – Complete Overhaul Set | Isuzu Excavator Engine Parts
This premium Isuzu 3LB1 Engine Gasket Kit is specifically engineered for Isuzu 3LB1 diesel engines used in compact excavators, mini excavators, and construction machinery including Ihimer, Imer, Yanmar, and various European compact excavator models. Manufactured to meet or exceed OEM specifications, this comprehensive gasket set includes every sealing component necessary for a complete upper and lower engine overhaul, ensuring leak-free sealing and restored engine compression.
The Isuzu 3LB1 is a 1.6L (1598cc), inline 3-cylinder, 4-stroke, water-cooled diesel engine known for its compact size, fuel efficiency, and reliable performance in demanding excavator applications. This engine requires precision sealing components to maintain optimal compression and performance under varying operating conditions.
OEM Reference Numbers
89704-39332, 8-97043-933-2, 8970456175, 8970646881, 8970346393, 8971485500, 8970849771, 8971474890

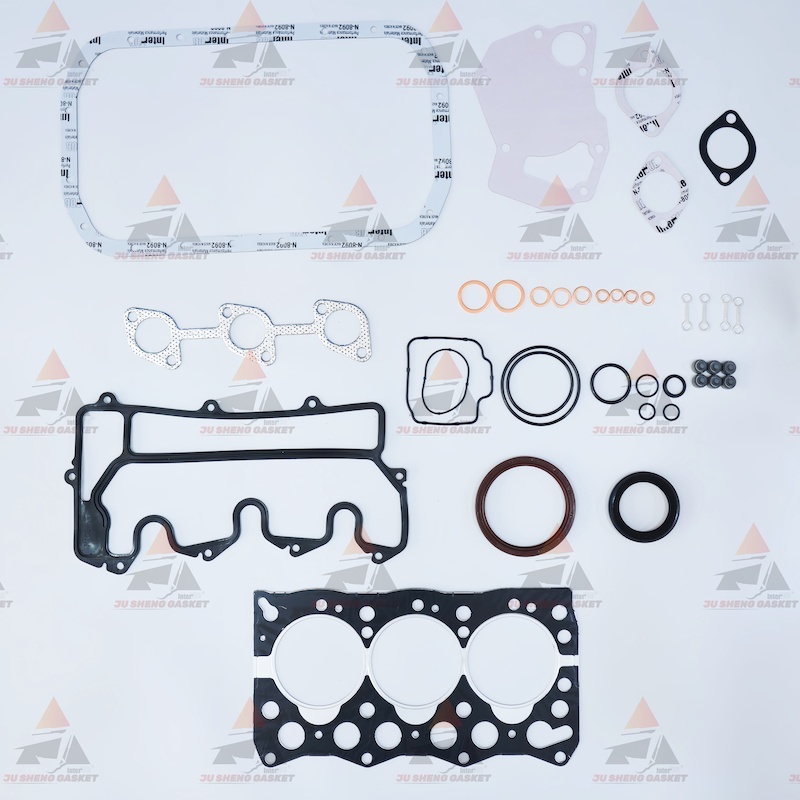

3LB1 Gasket Kit Contents
| Component |
Quantity |
Material / Remarks |

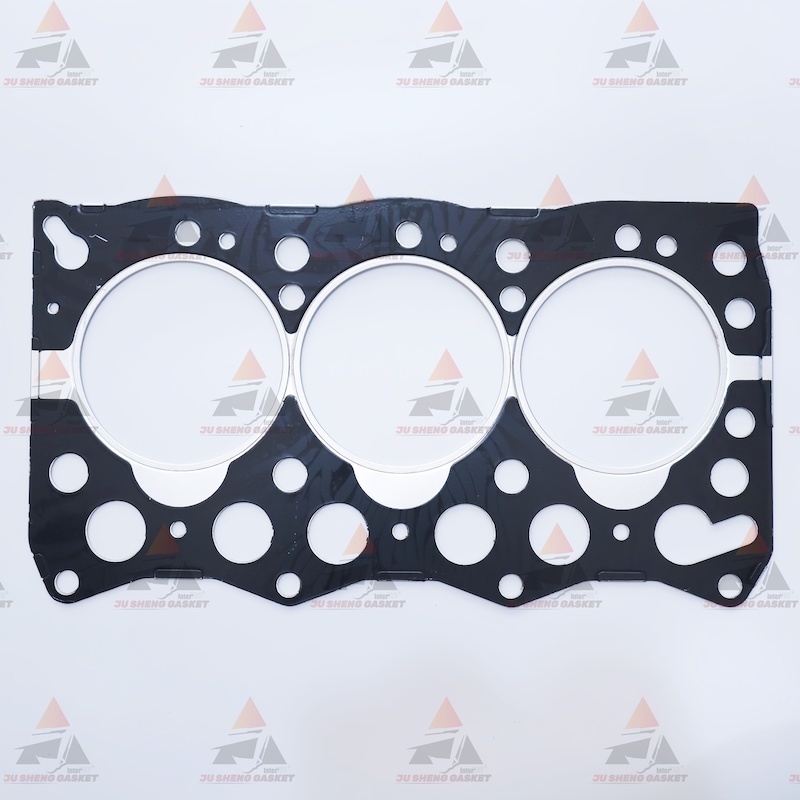

| Cylinder Head Gasket |
1 |
Multi-Layer Steel (MLS) / Stainless Steel |

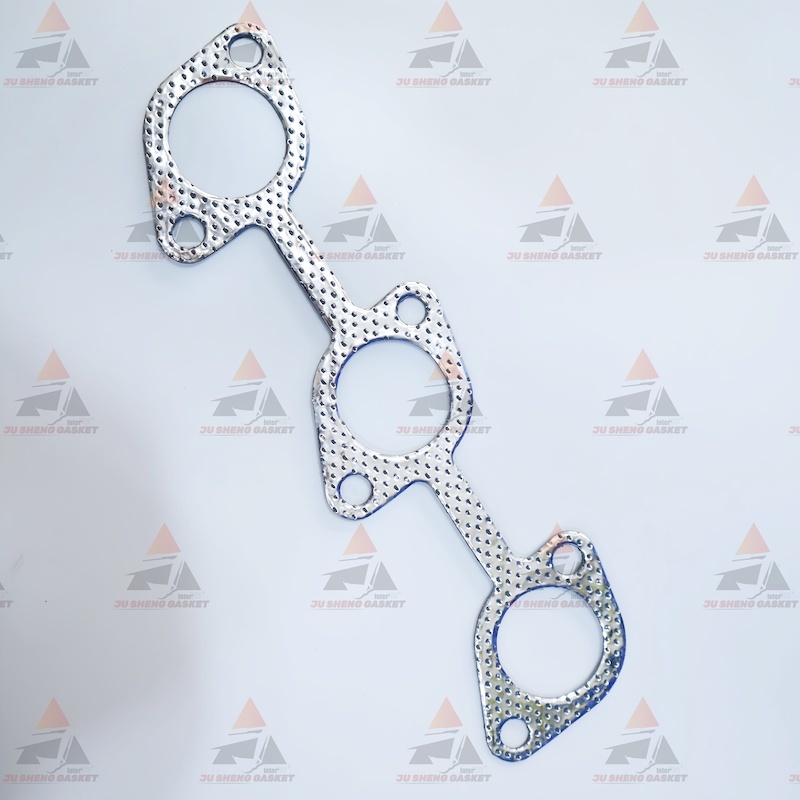

| Exhaust Manifold Gasket |
1 |
Graphite with steel core |
| Intake Manifold Gasket |
1 |
Composite fiber |

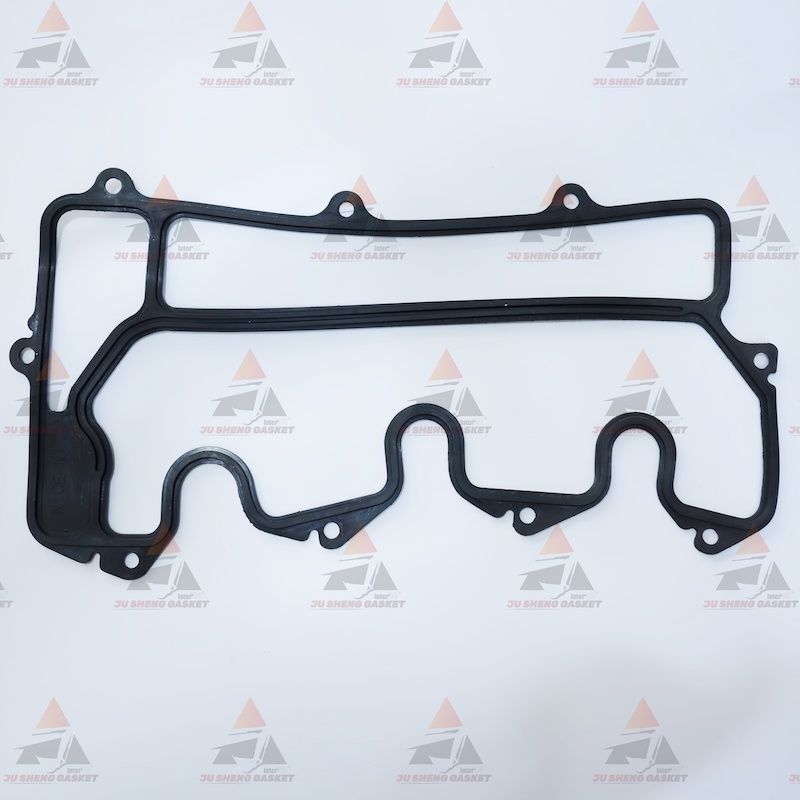

| Valve Cover Gasket |
1 |
Silicone rubber |
| Oil Pan Gasket |
1 |
Rubber / cork blend |
| Front Timing Cover Gasket |
1 |
Fiber / paper – includes cover gasket 8970646881 |
| Rear Main Seal |
1 |
PTFE / nitrile rubber |
| Front Crankshaft Oil Seal |
1 |
Nitrile rubber |
| Fuel Injection Pump Gasket |
1 |
Paper |
| Water Pump Gasket |
1 |
Fiber |
| Thermostat Housing Gasket |
1 |
Rubber |

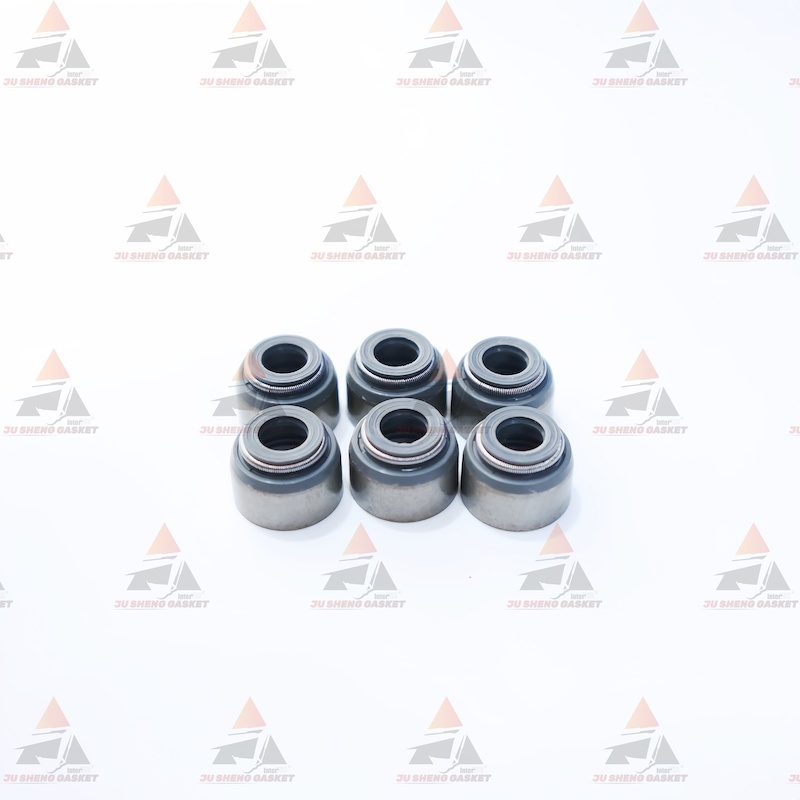

| Valve Stem Seals |
6 |
Viton |
| Injector Seals (copper) |
3 |
Annealed copper |
| Rocker Cover Gasket |
1 |
Silicone rubber |
| Glow Plug Seals (set) |
3 |
Copper / crush type |
| O-Ring Assortment |
Set |
Various sizes (Viton / NBR) |
Note: Kit contents may vary slightly depending on engine configuration and application. Please verify your engine serial number before ordering.
Key Features
- OEM-Equivalent Quality – Strictly adheres to Isuzu dimensions and material standards, ensuring perfect fit and function for 3LB1 engines
- Complete Overhaul Set – Includes all gaskets and seals for both upper and lower engine sections in one convenient kit
- Superior Durability – MLS head gasket withstands extreme temperatures up to 220°C and high cylinder pressures, preventing blowouts and leaks
- Corrosion-Resistant Materials – Stainless steel and coated components resist rust and chemical degradation in harsh environments
- Precision Fit – Direct bolt-on replacement; no modifications needed, with precision-engineered components for zero misalignment
- Comprehensive Leak Protection – Ensures oil, coolant, and combustion gases remain perfectly sealed, maximizing engine efficiency
- Heat-Resistant Construction – Graphite and steel composite exhaust gaskets withstand extreme exhaust gas temperatures
Applications
Engine
Isuzu 3LB1, 3LC1 diesel engine (1.6L / 1598cc) – mechanical injection, indirect injection
Excavators & Construction Machinery
- Ihimer compact excavators
- Imer compact excavators
- Various European compact excavator models
- Yanmar excavators (select models with Isuzu 3LB1)
- Fiat Hitachi compact excavators
- Eurocomach compact excavators
- JCB 8055, 8065 (select models)
Other Equipment
- Isuzu agricultural tractors equipped with 3LB1 engine
- Electric generators using Isuzu 3LB1 engine
- Construction equipment and heavy machinery
- Industrial equipment
- Multiquip TLG-12SPX generator
Why Choose Our Gasket Kit?
Each kit is manufactured in facilities specializing in diesel engine components. Every kit undergoes rigorous quality checks to guarantee consistent performance and longevity. Gaskets are engineered using advanced material technology – combining the strength of MLS steel with the flexibility of high-temperature elastomers – to deliver a sealing solution that outperforms standard aftermarket alternatives.
The 3LB1 engine requires precision sealing to maintain optimal compression and fuel efficiency. The MLS cylinder head gasket provides superior sealing against cylinder pressures through embossed bead technology, maintaining sealing pressure under varying thermal and mechanical loads.
Material Advantages
- MLS Cylinder Head Gasket: Multi-layer steel construction provides superior sealing force and heat dissipation compared to composite alternatives
- Viton Valve Stem Seals: Excellent heat and oil resistance, extending service life compared to standard rubber
- Precision-Machined Components: Ensures optimal alignment for maximum sealing performance
When performing a complete engine overhaul, this full gasket set saves time and money compared to sourcing individual components separately, while ensuring all sealing points are addressed with matched, compatible components designed specifically for the 3LB1 engine.
Proper installation is critical for optimal performance. Ensure engine is cool, thoroughly clean all mating surfaces, and follow specified torque values and sequences during reassembly.
