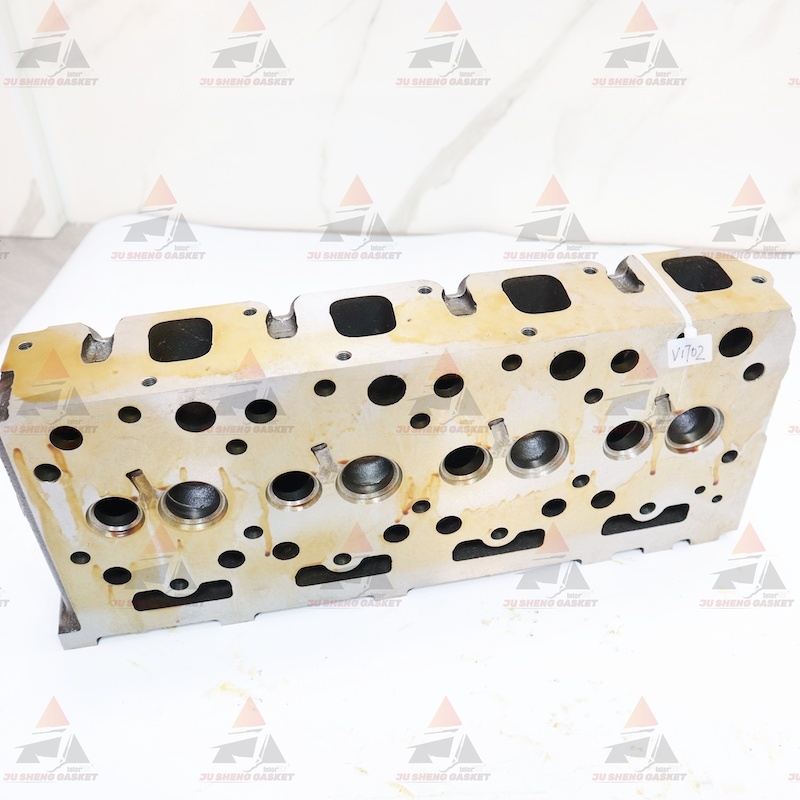

Kubota V1702 Diesel Engine Cylinder Head OEM 15422-03040 15476-03040 17345-03040

1 SET
MOQ
$980
Price
Kubota V1702 Diesel Engine Cylinder Head OEM 15422-03040 15476-03040 17345-03040
Features Gallery Product Description Chat Now
Features
Specifications
Applicable Engine Model: Kubota V1702
OEM Part Number / Cross Reference: 15422-03040 15476-03040 17345-03040
Cylinder Head Material Number: High-grade Cast Iron (resistant To Thermal Stress And Cracking)
Valve Configuration: Overhead Valve (OHV) With Precision-machined Guides And Seats
Combustion Type: Direct Injection
Condition / Warranty: Brand New / 6-month Warranty Against Manufacturing Defects
Quality Assurance: 100% Pressure Tested, ISO 9001 Certified
Installation Note: Replacement Of Head Bolts And Gasket Recommended For Proper Sealing
Highlight:

Kubota V1702 diesel engine cylinder head

,

15422-03040 diesel engine cylinder head

,

17345-03040 engine cylinder head
Basic Infomation
Place of Origin: CHINA
Brand Name: For Kubota
Certification: ISO 9001
Model Number: V1702
Payment & Shipping Terms
Packaging Details: Carton Packing, Wooden Case, Plastic Pallet, Paper Pallet.
Delivery Time: Ships in 24h (1-7 days max)
Payment Terms: T/T,Western Union,D/A
Supply Ability: 1000PCS / WEEK
Product Description
Kubota V1702 Diesel Engine Cylinder Head | OEM 15422-03040 15476-03040 17345-03040 | Engine Cylinder Head
Upgrade or repair your excavator, skid steer loader, tractor, or industrial equipment with this premium-grade cylinder head for the Kubota V1702 engine. Manufactured to meet or exceed original OEM specifications, this cylinder head ensures optimal combustion sealing, superior heat dissipation, and long-term durability. Direct replacement for multiple OEM numbers including 15422-03040, 15422-03044, 15476-03040, 17345-03040, and 6660966. Fits a wide range of Kubota and Bobcat machinery – verify your engine model for compatibility.

Technical Specifications
Engine Model Kubota V1702, V1702B, V1702T, V1702E, V1702A
Part Name Cylinder Head (Complete Assembly / Bare)
OEM Part Numbers 15422-03040, 15422-03044, 15476-03040, 17345-03040, 6660966, 6598127
Casting Numbers V1512, K1A, K1B, 40420 K1A, 80208 K1B
Engine Displacement 1.73 L (1,732 cc / 105.7 cu in)
Cylinder Bore 82.0 mm (3.23 in)
Piston Stroke 82.0 mm (3.23 in)
Number of Cylinders 4 (Inline)
Compression Ratio 21.0:1
Material High-Grade Cast Iron (Resistant to thermal stress and cracking)
Valve Configuration Overhead Valve (OHV) with precision-machined guides and seats, 8 valves total
Combustion Type Direct Injection (Spherical type combustion chamber)
Valve Clearance (Intake & Exhaust) 0.18-0.22 mm (0.0071-0.0087 in)
Cylinder Head Surface Flatness 0.05 mm (0.0020 in) maximum
Top Clearance (Piston protrusion) 0.7-0.9 mm (0.0276-0.0354 in)
Steam Holes (10) 7/32" diameter
Condition Brand New / Remanufactured Option Available
Warranty 6 Months

Compatible Equipment & Applications
Mini Excavators Kubota KX101, KX151, KH90, KH101, KH151
Skid Steer Loaders Bobcat 733, 743, 743B, 743DS, 645, 1600, 225, 231, 331, 3023; Mustang 442
Tractors Kubota L355, L2850, L3250, L3450, L275, L295, L305, L2250, M4030, M4050, M4500
Wheel Loaders Bobcat 1600; Kubota R400, R400B, R410, R410B
Construction & Industrial Kubota KH28L, KH60, KH170L
Other Applications Forklifts, generators, and agricultural machinery powered by Kubota V1702 diesel engines

Product Features & Engineering Advantages
  • Precision Casting & Material Strength: Manufactured from high-strength cast iron alloy to withstand extreme combustion pressures and temperatures. The material ensures excellent heat dissipation and minimizes the risk of cracking between valves and injector seats.
  • Enhanced Airflow & Combustion Efficiency: Intake and exhaust runners feature precision-engineered ports designed for optimal flow dynamics. Multi-valve configuration optimizes airflow for improved combustion efficiency, resulting in better fuel economy and power output.
  • Optimized Thermal Management: Includes precision-drilled water holes that allow proper coolant circulation, helping to regulate engine temperature and prevent overheating under varying operating conditions.
  • Precision-Machined Valve Train: Features precisely machined valve guides and seats to ensure proper sealing and longevity. Compatible with overhead valve (OHV) configurations. Valve seat width is 2.1 mm with a 45-degree seat angle.
  • Complete Gasket Kit Available Separately: For a proper seal, replacing your cylinder head gasket and bolts is recommended. Compatible gasket kits and head bolts are available for the V1702 engine.
  • Direct Replacement: Engineered for a perfect fit—no modifications required. Bolts directly onto Kubota V1702 engine blocks.

Quality Assurance & Why Choose Us
  • 100% Tested – Every cylinder head undergoes pressure testing to ensure no internal leaks in water jackets or oil passages
  • OEM Standard – Manufactured in ISO-certified facilities with EPR Germany Packing certification available
  • Warranty – 6-month warranty against manufacturing defects
  • Global Shipping – Fast DHL, FedEx, UPS shipping available from multiple warehouses
  • Expert Support – Need help identifying your part? Send us your engine code or old part number

Installation Note (Technical Reference)
When installing a new cylinder head on a Kubota V1702 engine, it is critical to check piston protrusion (top clearance) to select the correct head gasket thickness. Factory specification for top clearance is 0.7-0.9 mm (0.0276-0.0354 in).

Cylinder head surface flatness must not exceed 0.05 mm (0.0020 in). Valve clearance for both intake and exhaust should be set to 0.18-0.22 mm (0.0071-0.0087 in) with the engine cold.

Always replace head bolts and use a new gasket for optimal results. Professional installation is recommended due to the precision required for alignment, torque specifications, and sealing to prevent leaks or damage.
