Home /Products/Isuzu Excavator Engine Parts/ISUZU 4LC1 OE 8-97176-612-0 5-87812-670-3 Engine Overhaul Gasket Kit for IHI 40JX Sumitomo SH40JX Excavator

ISUZU 4LC1 OE 8-97176-612-0 5-87812-670-3 Engine Overhaul Gasket Kit for IHI 40JX Sumitomo SH40JX Excavator

1 SET
MOQ
$28-$35
Price
ISUZU 4LC1 OE 8-97176-612-0 5-87812-670-3 Engine Overhaul Gasket Kit for IHI 40JX Sumitomo SH40JX Excavator
Features Gallery Product Description Chat Now
Features
Specifications
Product Model: ISUZU 4LC1 Engine Overhaul Gasket Kit
OE Number: 8-97176-612-0, 5-87812-670-3, 8-97099-788-0, 8971766120, 5878126703
Fit Engine: ISUZU 4LC1 2.179L 4-Cylinder Water-Cooled Diesel Engine
Application: IHI 40JX, Sumitomo SH40JX, ISUZU 4LC1 Excavators & Light Trucks
Condition: Brand New, ISO 9001 Certified, OEM Standard
Material: 3-Layer MLS (Multi-Layer Steel) With Elastomeric Coating, Reinforced Composite
Kit Includes: Full Set Of Gaskets, Seals, And O-rings For 4LC1 Engine Overhaul
Warranty: 12 Months
Basic Infomation
Place of Origin: CHINA
Brand Name: For Isuzu
Certification: ISO 9001
Model Number: ISUZU 4HL1
Payment & Shipping Terms
Packaging Details: Plastic bag , Box , Carton
Delivery Time: 3-8 days
Payment Terms: T/T,Western Union,D/A
Supply Ability: 10000PCS/ WEEK
Product Description
ISUZU 4LC1 Engine Overhaul Gasket Kit
ISUZU 4LC1 Engine Overhaul Gasket Kit, with core OE Numbers 8-97176-612-0, 5-87812-670-3 and more, is a premium direct-fit sealing solution exclusively engineered for ISUZU 4LC1 2.179L 4-cylinder water-cooled diesel engines. It is perfectly compatible with IHI and Sumitomo compact excavators, including IHI 40JX and Sumitomo SH40JX, widely used in light construction, landscaping, and small-scale earthmoving work where reliability and minimal downtime are critical.
Crafted with high-quality 3-layer MLS (Multi-Layer Steel) with elastomeric coating and reinforced composite materials, this ISUZU 4LC1 gasket kit delivers exceptional heat resistance (exceeding 1200°C), high-pressure tolerance (up to 1800 psi), and leak-free performance. It meets or exceeds OEM standards, ensures easy installation with no modifications, and is the top choice for professional mechanics, fleet managers, and excavator operators.
Product Specifications
Specification Details
Product Name ISUZU 4LC1 Engine Overhaul Gasket Kit
Main OE Numbers 8-97176-612-0, 8971766120, 5-87812-670-3, 5878126703, 8-97099-788-0, 8970997880, 8-97126-186-0, 8971261860
Fit Engine ISUZU 4LC1 Diesel Engine (4-Cylinder, Inline, 4-Stroke, Water-Cooled, Indirect Injection, OHV; Displacement: 2.179L)
Fit Equipment IHI 40JX Excavator; Sumitomo SH40JX Excavator; ISUZU 4LC1-powered Compact Loaders & Light Trucks
Material 3-Layer MLS (Multi-Layer Steel) Cylinder Head Gasket (with elastomeric coating), Reinforced Composite Manifold Gaskets, Metal-Reinforced Rubber Seals, Nitrile Rubber O-Rings
Engine Specs Bore x Stroke: 85mm x 96mm; Max Power: 32-43 kW (43-58 HP) @ 2300-3000 RPM; Max Torque: 140-180 Nm @ 1800-2200 RPM; Compression Ratio: 18.0:1; Emission Standard: EPA-Compliant, CE Approved

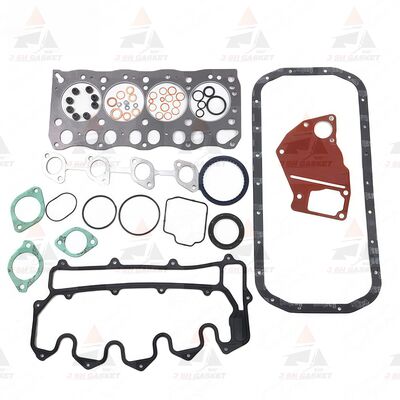

Kit Components MLS Cylinder Head Gasket, Intake/Exhaust Manifold Gaskets, Valve Cover Gaskets, Oil Pan Gasket, Water Pump Gasket, Timing Cover Gasket, Front/Rear Crankshaft Seals, Valve Stem Seals, All Required O-Rings & Small Gaskets
Condition Brand New, Precision Manufactured, ISO 9001 Certified, OEM Standard
Weight Approx. 3.5 kg (7.72 lbs)
Warranty 12 Months
Key Features
  • OEM Exact Fit
  • MLS Metal Construction
  • High Heat/Pressure Resistance
  • Leak-Free Sealing
  • Direct Replacement
  • Easy Installation
  • Durable for Light-Duty Use
OE Cross-Reference
Our Part Number OE Number Compatible Brand Application
GK-ISUZU-4LC1-001 8-97176-612-0 ISUZU ISUZU 4LC1 Engine Overhaul Gasket Kit
GK-ISUZU-4LC1-001 8971766120 ISUZU ISUZU 4LC1 Engine Overhaul Gasket Kit
GK-ISUZU-4LC1-001 5-87812-670-3 ISUZU ISUZU 4LC1 Full Gasket Set (Kit Included)
GK-ISUZU-4LC1-001 5878126703 ISUZU ISUZU 4LC1 Full Gasket Set (Kit Included)
GK-ISUZU-4LC1-001 8-97099-788-0 ISUZU ISUZU 4LC1 Gasket Set (Compatible)
GK-ISUZU-4LC1-001 8970997880 ISUZU ISUZU 4LC1 Gasket Set (Compatible)
GK-ISUZU-4LC1-001 8-97126-186-0 ISUZU ISUZU 4LC1 Exhaust Manifold Gasket (Kit Included)
GK-ISUZU-4LC1-001 8971261860 ISUZU ISUZU 4LC1 Exhaust Manifold Gasket (Kit Included)
GK-ISUZU-4LC1-001 5878143062 ISUZU ISUZU 4LC1 Engine Overhaul Gasket Set (Compatible)
GK-ISUZU-4LC1-001 8941337599 ISUZU ISUZU 4LC1 Glow Plug Gasket (Kit Included)
Why Choose Our ISUZU 4LC1 Gasket Kit?
Our ISUZU 4LC1 gasket kit is a high-quality aftermarket alternative that meets or exceeds OEM standards, crafted with premium 3-layer MLS material and reinforced composites to withstand extreme heat and pressure in light-duty construction environments. Strict quality control ensures dimensional accuracy and perfect fit for ISUZU 4LC1 engines, avoiding installation issues and rework. With the same reliability as genuine ISUZU parts at a fraction of the cost, it's the top choice for maintaining IHI 40JX, Sumitomo SH40JX, and ISUZU 4LC1-powered excavators and compact equipment.
Buy Now & Reduce Downtime
If you're maintaining ISUZU 4LC1-powered excavators (IHI 40JX, Sumitomo SH40JX, etc.), our gasket kit is the reliable, cost-effective solution you need. It includes all necessary components, fits precisely, and comes with a 12-month warranty. Order now—we ship worldwide with fast delivery to get your equipment back on the job quickly!
ORDER NOW
Tag:

engine gasket kit

isuzu engine parts

overhaul gasket kit
